Jacquard Crochet Machine Computerized Control Unlimited Pattern For Webbing

Product Introduction

Product Overview

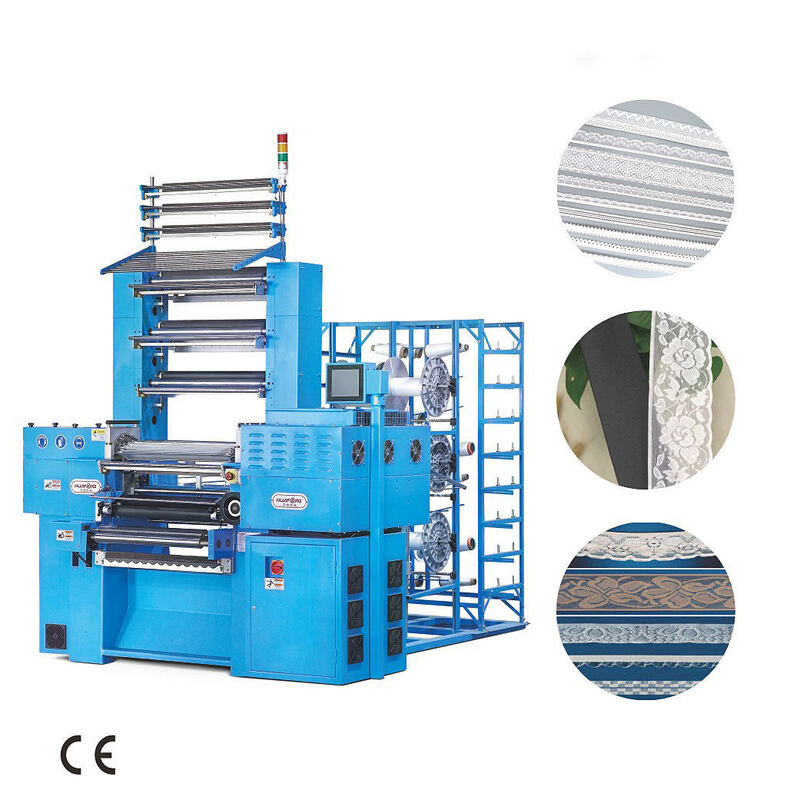

The HF-CT609/B16 Computerized Jacquard Crochet Machine is a high-end computerized jacquard crochet equipment launched by Huafang Machinery, specially designed for producing various elastic and non-elastic webbing, with particular expertise in weaving exquisite webbing patterns and lace webbing, widely used in the production of bras, petticoats, underwear, and waistbands garment accessories.

In terms of core drive, this machine adopts an innovative structural design with 16 motors directly driving 16 weft bars. Each weft bar is independently driven by a dedicated motor, eliminating lateral vibration caused by other accessories in traditional mechanical transmission, thereby achieving higher quality webbing production. The 3 weft bars controlled by the left auxiliary box rocker are responsible for creating edges and controlling elastic threads, ensuring neat edges and uniform elasticity.

In terms of control and intelligence, the HF-CT609/B16 is controlled by the latest generation integrated signal controller developed by experts, featuring outstanding advantages such as excellent performance, good dynamic performance, and high positioning accuracy. The machine is equipped with a touch screen for real-time production data monitoring, offering intuitive and convenient operation. Webbing patterns are edited through template-based editing using Huafang's exclusively developed and代理 weaving software, supporting ultra-long pattern repeat with unlimited pattern rows. Pattern data is conveniently transferred from PC to the machine via compact flash card, enabling fast and efficient pattern changes without complicated mechanical adjustments.

In terms of structure and configuration, the machine features an operating width of 600mm and is compatible with multiple gauge specifications. The main motor power is 1.5KW-380V, equipped with inverter and control device for stable and efficient operation. Standard configuration includes three-layer weft conveyor group, drop frame group, three-color indicator light, and front beam frame group. Standard accessories include 500 knitting needles, 200 sha tsui, 100 xianggenzui, warp stop needles, straight and curved trimming needles (1 each), special wrench for adjusting the size (1 piece), and tool kit (1 set), with one tool kit provided for every three machines for convenient daily maintenance and spare parts replacement. Optional accessories include front conveyor group, 606B widening device, and 606B twisting device for flexible function expansion.

Product Features

Application Scope

The HF-CT609/B16 Computerized Jacquard Crochet Machine is suitable for producing various elastic and non-elastic webbing, with particular expertise in weaving exquisite webbing patterns and lace webbing. Specific application areas include but are not limited to the following categories:

(I) Garment Accessories

• Bra Webbing – Bra shoulder straps, back closure straps, adjustment straps, decorative lace tapes, requiring exquisite patterns and uniform elasticity

• Petticoat Webbing – Petticoat waistband elastics, decorative lace tapes, lace trimming tapes

• Underwear Webbing – Panty waistband elastics, underwear shoulder straps, elastic lace tapes, lace trimmings

• Waistbands – Decorative belts and functional waistband jacquard webbing for various garments

• Lace Trimmings – Garment lace trimmings, decorative lace, trimming tapes, piping tapes

• Elastic Webbing – Elastic webbing for sportswear, swimwear, yoga wear, etc.

• Garment Decorative Webbing – Suspenders, shoulder straps, decorative tapes, label tapes, etc.

(II) Luggage & Bags

• Luggage Webbing – Backpack shoulder straps, handbag carrying handles, luggage binding straps, edge decorative tapes

• Pet Supplies Webbing – Pet collars, leashes, harnesses with jacquard patterns

(III) Home Textiles

• Home Decorative Webbing – Curtain tie-backs, sofa piping tapes, cushion decorative belts, bedding edge tapes

• Gift Packaging Webbing – Gift box decorative tapes, holiday decorative ribbons, floral packaging tapes

(IV) Medical & Healthcare

• Medical Bandages – Jacquard weaving of medical elastic bandages and compression bandages

• Sports Protective Straps – Elastic fixation straps for knee pads, wrist guards, waist supports, and other sports protective gear

(V) Industrial & Special Purpose

• Industrial Webbing – Binding tapes, safety ropes, and other industrial webbing

• Automotive Interior Webbing – Automotive seat belts, interior fixation webbing

Target Customer Groups:
This product is particularly suitable for mid-to-high-end webbing manufacturers, underwear accessory factories, and lace producers, especially for webbing production requiring complex jacquard patterns, ultra-long pattern repeats, and high-precision pattern duplication. It is an ideal choice for large-volume, high-quality jacquard webbing production.

Company Advantages

Huafang Machinery has been dedicated to the R&D and manufacturing of textile webbing equipment for many years, accumulating rich technical experience in the field of computerized jacquard crochet machines. The HF-CT609/B6 is a mature mass-produced model with stable and reliable quality.

The company masters core electronic traverse control technology, adopting the latest-generation integrated signal controller to achieve independent motor drive for 16 weft bars with high positioning accuracy, continuously providing high-performance jacquard solutions for the webbing industry.

Huafang's exclusive weaving software supports template-based pattern editing and ultra-long pattern repeats. Pattern data can be easily transferred from PC to machine via compact flash cards, greatly simplifying pattern management and changeover processes, helping customers achieve small-batch multi-variety flexible production.

The company provides a comprehensive after-sales service system, including 1-year machine warranty, mechanical test reports, and video factory inspection services, ensuring customers' long-term stable operation of equipment. Huafang brand enjoys a good reputation in the textile webbing industry, with products widely used in various webbing manufacturers and highly trusted by customers.

Meanwhile, Huafang relies on Guangdong's complete manufacturing supply chain to achieve in-house production and direct factory supply, ensuring controllable equipment quality and stable delivery cycles. The company provides high-performance computerized jacquard crochet equipment at reasonable prices, helping customers improve webbing quality and production efficiency, reduce overall operating costs, and create long-term value for customers.
