Intelligent Tensioning Ironing Machine PLC Servo Drive 2% Shrinkage for Webbing

Product Introduction

Product Overview

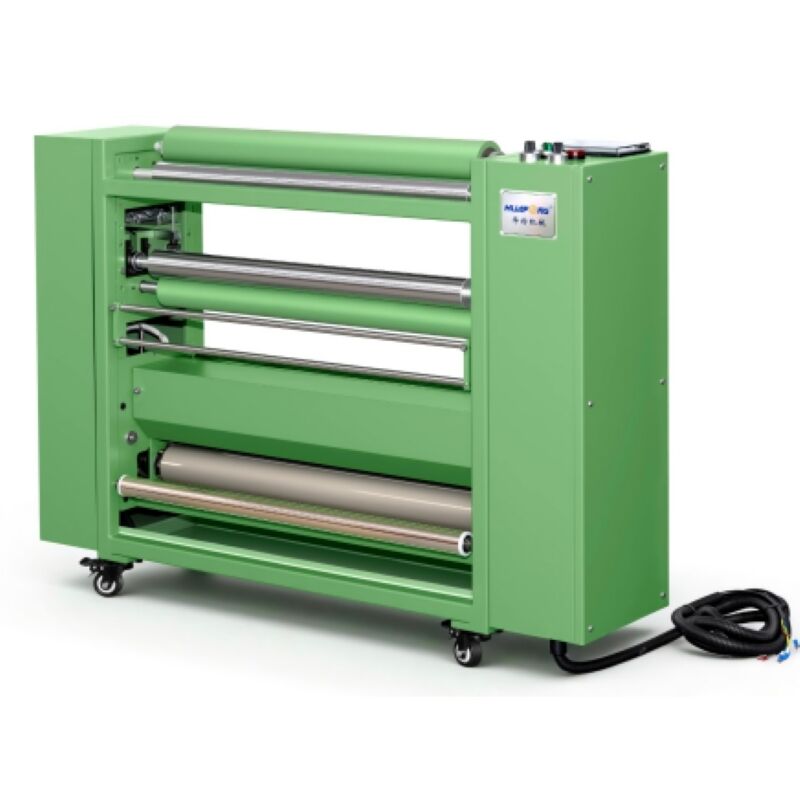

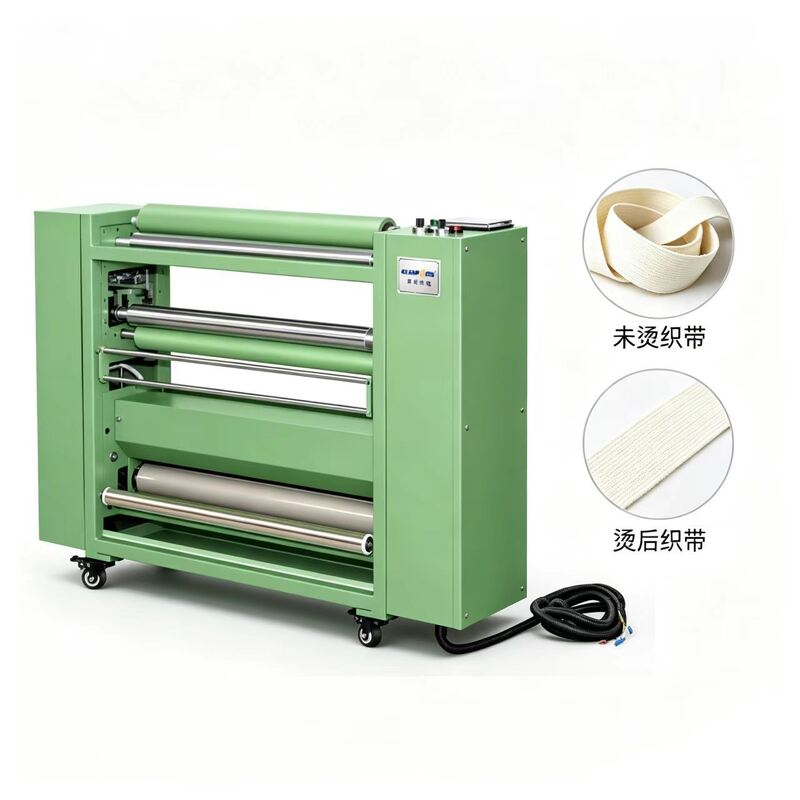

The HF-B4027 / HF-B4027-L Intelligent Tensioning and Ironing Machine is a new-generation intelligent setting equipment specially developed by Huafang Machinery for the post-treatment setting process of narrow-width webbing. This product integrates two traditional processes — tensioning setting and ironing pre-shrinking — into one integrated process, which can be directly mounted on the webbing machine head to achieve simultaneous weaving and setting, completely revolutionizing the production mode of webbing post-treatment.

The machine adopts a core control architecture of PLC programmable logic controller + 7-inch color touch screen + dual servo motor traction system, realizing digital precision setting and closed-loop control of four core parameters: tension, temperature, speed, and pre-shrinkage ratio, completely eliminating the dependence on experienced technicians for traditional mechanical adjustments. Operators simply input values directly on the touch screen to complete process parameter settings, allowing new operators to get started quickly, greatly reducing labor training costs and adjustment losses.

In terms of product specifications, the standard HF-B4027 model has an effective ironing width of 660mm, while the HF-B4027-L widened model offers an effective ironing width of up to 936mm, covering the production needs of different webbing widths. The setting temperature ranges from 0-400°C with a control accuracy of up to ±1°C, ensuring uniform heat distribution across every inch of webbing; the tension range is 0-200N adjustable, and the operating speed is 0-50m/min steplessly adjustable via servo motor, adapting to various webbing types from lightweight ribbons to heavy elastic tapes.

In terms of energy consumption and space occupation, the machine adopts MODBUS UTU485 control technology, consuming only approximately 0.4 kWh per hour, with a footprint of only 0.3 square meters (0.33 square meters for HF-B4027-L). No independent workshop is required — it can be directly deployed alongside the production line, greatly saving factory space and operating costs.

The machine features a compact and robust design, with the HF-B4027 weighing 136kg and dimensions of 1140×260×880mm; the HF-B4027-L weighing 170kg and dimensions of 1410×260×880mm. The machine adopts electric heating, operates on 220V power supply, with a rated power of 2.2KW, compatible with power standards in most countries and regions worldwide.

As an intelligent, digital, and energy-saving equipment specially developed for webbing post-treatment setting, the HF-B4027 series intelligent tensioning and ironing machine precisely addresses the core pain points in webbing production, including wavy distortion, unstable width, excessive washing shrinkage rate, and difficulty in adjusting old-style machines, making it an ideal choice for webbing manufacturers to improve quality, increase efficiency, and reduce costs.

Product Features

Product Applications

The HF-B4027 / HF-B4027-L Intelligent Tensioning and Ironing Machine is specially designed for post-treatment setting of narrow-width webbing, with an extremely wide range of applications covering the following industries and product categories:

(I) Garment Accessories

• Elastic Tapes – Setting treatment for waistband elastics, pants elastic bands, bra shoulder straps, sportswear elastic closures, and various other elastic webbing, ensuring uniform elasticity, consistent width, and controllable shrinkage

• Ribbons – Gift packaging ribbons, garment decorative ribbons, wedding dress ribbons, headwear bow ribbons, etc., requiring smooth flat surfaces, soft hand feel, and vibrant colors

• Garment Webbing – Suspenders, shoulder straps, belts, piping tapes, decorative tapes, and other garment accessory webbing, with stable dimensions and flat finish after setting

• Zipper Tapes – Setting treatment for zipper tape base materials, ensuring dimensional accuracy and abrasion resistance

• Hook & Loop Fastener Tapes – Setting treatment for Velcro base tapes, ensuring flat bonding of hook and loop surfaces

(II) Luggage & Bags

• Luggage Webbing – Backpack shoulder straps, handbag carrying handles, luggage binding straps, edge decorative tapes, etc., requiring crisp shaping, tensile resistance, and dimensional stability after setting

• Pet Supplies Webbing – Pet collars, leashes, harnesses, etc., flat and durable after setting

(III) Home Textiles

• Decorative Tapes – Curtain tie-backs, sofa piping tapes, cushion decorative belts, bedding edge tapes, carpet edge tapes, etc.

• Gift Packaging Tapes – Gift box decorative tapes, floral packaging ribbons, holiday decorative ribbons, greeting card decorative tapes

(IV) Medical & Healthcare

• Medical Bandages – Setting treatment for medical elastic bandages and gauze bandage alternatives, ensuring uniform elasticity and consistent width

• Sports Protective Straps – Elastic fixation straps for knee pads, wrist guards, waist supports, and other sports protective gear, with stable dimensions and comfortable fit after setting

(V) Industrial & Special Purpose

• Industrial Webbing – Setting treatment for binding tapes, safety ropes, tool hanging straps, and other high-strength industrial webbing

• Automotive Interior Webbing – Automotive seat belts, interior fixation webbing, etc.

Target Customer Groups:
This product is particularly suitable for small, medium, and large webbing manufacturers. Whether for large-scale standardized production or small-batch multi-variety flexible production modes, the HF-B4027 series intelligent tensioning and ironing machine enables efficient changeover through recipe storage and one-click recall functions, meeting diverse production needs. It is especially ideal for modern webbing factories pursuing high efficiency, energy savings, stable quality, and reduced labor costs.
