| Brand Name: | HUAFANG |
| Model Number: | HF10/27 |
| MOQ: | 1 |
| Price: | Negotiation |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T,L/C |

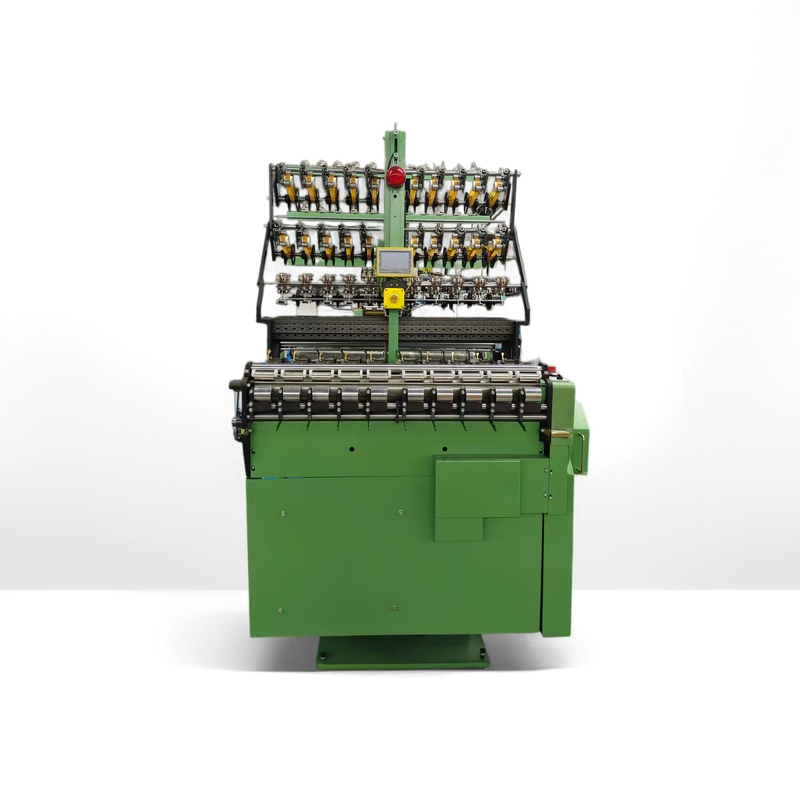

The HF10/27 Computerized High-Speed Crochet Machine is a high-performance model within Huafang Machinery's HF series of narrow-width webbing crochet equipment. This model supports simultaneous production of 10 webbing strips, with a reed width of 27mm, equipped with 20 heald frames, and a pattern plate cycle of 48 steps. It adopts an internationally advanced servo motor control system and computer smart display, specially designed for producing high-quality, high-difficulty, and varied narrow elastic and non-elastic webbing.
In terms of core drive, the HF10/27 is powered by a high-performance servo motor with a maximum power of 4.3KW, achieving machine speeds of 1200-1400 rpm. Compared with traditional two-speed motors, it saves up to 40% of electricity (consuming only 0.75KW during normal operation). The weft density ranges from 2.9 to 40.3 weft/cm, controlled by an electronic servo motor with planetary reducer, ensuring extremely high weft density control accuracy with flexible and convenient adjustment, adapting to complex process requirements and significantly improving fabric quality and production efficiency.
In terms of structural design, the HF10/27 features a floor-standing integrated weighted and widened base, effectively enhancing machine stability to support higher operating speeds and greater output capacity. The heald frame length reaches 700mm, providing ample process space for pattern variations. The total machine net weight is 600kg, with machine head dimensions of L1500×W1160×H2100mm, ensuring a solid and robust structure with stable and reliable operation.
In terms of intelligence and user-friendliness, the HF10/27 is equipped with a computer touch screen smart display, where main motor operation and electronic weft density control are uniformly managed through the touch screen. The operation is intuitive and easy to understand, parameter adjustments are convenient and precise, status monitoring and fault diagnosis are efficient, and it supports automatic linkage and data management, providing strong support for the construction of modern smart factories.
In terms of safety and durability, the machine adopts a carbon steel and environmentally friendly ABS material full protective cover design, providing all-round operator protection and complying with international CE safety standards. All machine parts are manufactured with the best quality raw materials and high-precision processes, with weaving components interchangeable for easy maintenance and repair. Additionally, the machine is equipped with an automatic circulating oil supply device, ensuring adequate lubrication for the worm gear under high-speed operation, effectively reducing wear and extending the service life of core components.
The HF10/27 can also be equipped with optional tape pulling machine and HF-C4012 heating setting machine, forming a complete production line from weaving to post-treatment setting, meeting customers' one-stop equipment procurement needs.
| Feature | Detailed Description |
|---|---|
| Computer Smart Display | Equipped with touch screen HMI, unified control of main motor operation and electronic weft density, intuitive operation, convenient and precise parameter adjustment, efficient status monitoring and fault diagnosis, supports automatic linkage and data management |
| Servo Motor Control System | Adopts internationally advanced servo motor control system, achieving high-precision and high-response motion control, excellent high-speed operation stability and adaptability, superior performance under variable speed and variable load conditions |
| High Weft Density Control Precision | Electronic servo motor with planetary reducer controls weft density, achieving extremely high control accuracy, flexible and convenient adjustment, adapting to complex processes, significantly improving fabric quality and production efficiency |
| 40% Electricity Saving | Servo motor consumes only 0.75KW during normal operation, saving 40% electricity compared to traditional two-speed motors, significantly reducing long-term operating costs |
| Automatic Circulating Oil Supply Device | Standard automatic circulating lubrication system ensures adequate lubrication for worm gear under high-speed operation, effectively reducing wear and extending core component service life |
| High-Precision Components | All parts manufactured with best quality raw materials, high-precision processes, and high standardization, durable and long-lasting, weaving components interchangeable for easy maintenance and repair |
| CE Safety Standard Protection | Full protective cover design with carbon steel and environmentally friendly ABS material, providing all-round operator protection, complying with international CE safety standards |
| Floor-Standing Weighted & Widened Base | Integrated weighted and widened base design enhances machine stability, increasing operating speed and output capacity, supporting high-speed continuous operation |
| Multiple Model Specifications Available | Same series offers 18 models from HF2/130 to HF14/27, with webbing strips from 2 to 14 and reed width from 27mm to 130mm, meeting different capacity and width requirements |
| Optional Post-Treatment Equipment | Supports optional tape pulling machine and HF-C4012 heating setting machine, achieving integrated weaving and setting, simplifying production process |
| Wide Voltage Compatibility | Standard 220V voltage configuration, compatible with power supply standards in most countries and regions worldwide |
The HF10/27 Computerized High-Speed Crochet Machine has an extremely wide range of applications, specially designed for weaving high-quality, high-difficulty, and varied narrow elastic and non-elastic webbing, covering the following industries and product categories:
(I) Garment Accessories
Underwear Webbing – Bra shoulder straps, underwear elastic bands, lace trim base tapes, panty waistband elastics, etc., requiring uniform elasticity, comfortable touch, and dimensional stability
Elastic Webbing – Various garment elastic bands, waistband rubbers, sportswear elastic closures, swimwear elastic bands, etc.
Bra Straps – Ladies' bra back closure straps, adjustment straps, shoulder straps, etc., requiring high strength and excellent resilience
Sports Elastic Webbing – Elastic webbing for sportswear, yoga wear, fitness wear, etc., requiring high tensile recovery and sweat resistance
Garment Decorative Webbing – Piping tapes, trimming tapes, decorative lace tapes, fashion accessory webbing, etc.
Zipper Tapes – Zipper tape base materials requiring flatness, abrasion resistance, and dimensional accuracy
Hook & Loop Fastener Tapes – Hook and loop base tapes for Velcro, requiring good tensile strength and repeated fastening durability
(II) Medical & Healthcare
Medical Bandages – Disposable or reusable medical elastic bandages, gauze bandage alternatives, compression bandages, etc.
Sports Protective Straps – Elastic fixation straps and support straps for knee pads, wrist guards, ankle supports, waist supports, and other sports protective gear
Rehabilitation Therapy Bands – Elastic bands for rehabilitation training, resistance bands for physical therapy, traction bands, etc.
(III) Luggage & Bags
Luggage Webbing – Backpack shoulder straps, handbag carrying handles, luggage binding straps, backpack compression straps, edge decorative tapes
Pet Supplies Webbing – Pet collars, leashes, harnesses, pet clothing decorative tapes, etc.
(IV) Home Textiles
Home Decorative Webbing – Curtain tie-backs, sofa piping tapes, cushion decorative belts, bedding edge tapes, carpet edge tapes
Gift Packaging Webbing – Gift box decorative tapes, floral packaging ribbons, holiday decorative ribbons, greeting card decorative tapes
(V) Industrial & Special Purpose
Industrial Webbing – Binding tapes, safety ropes, tool hanging straps, high-altitude safety belts, and other high-strength industrial webbing
Automotive Interior Webbing – Automotive seat belts, interior fixation webbing, door edge sealant carrier webbing
Outdoor Equipment Webbing – Mountaineering backpack webbing, tent binding straps, sleeping bag compression straps, outdoor equipment hanging straps
Target Customer Groups:
This product is particularly suitable for small, medium, and large webbing manufacturers. Whether for large-volume standardized order production or small-batch multi-variety flexible customized production, the HF10/27 provides efficient and reliable production solutions with its flexible weft density adjustment, convenient recipe changeover, and stable high-speed operation performance.
| Advantage | Detailed Description |
|---|---|
| Specialized in Webbing Equipment Manufacturing | Huafang Machinery has been dedicated to the R&D and manufacturing of webbing crochet equipment for many years, with rich industry experience and technical accumulation. The HF series covers 18 models to meet different customer capacity and specification requirements |
| Core Technology Innovation | Pioneered the application of servo motor control systems, computer touch screen intelligent control, and electronic weft density precision adjustment to narrow-width webbing crochet equipment, continuously leading industry technology upgrades |
| Energy Saving & Environmental Leadership | Servo motor saves 40% electricity compared to traditional two-speed motors, significantly reducing customers' long-term operating costs, in line with green manufacturing and sustainable development trends |
| Quality Assurance System | All parts manufactured with best quality raw materials and high-precision processes, CE and ISO 9001 certified, each machine strictly inspected for stability and durability |
| CE Safety Standard Certification | Full protective cover design with carbon steel and environmentally friendly ABS material, complying with international CE safety standards, providing all-round operator protection |
| Comprehensive Product Series | HF series offers 18 models from 2 to 14 webbing strips and reed widths from 27mm to 130mm, forming a complete product matrix for one-stop diversified production needs |
| Global Export Experience | Products exported to many countries and regions worldwide, proven in international markets, highly trusted and well-received by overseas customers |
| Comprehensive After-Sales Service | Provides video technical support, on-site installation guidance and maintenance & repair services, 1-year warranty, 7×24 hours quick response to customer needs |
| Flexible Optional Expansion | Supports optional tape pulling machine and HF-C4012 heating setting machine, building an integrated production line from weaving to setting, simplifying customers' equipment procurement process |
| High Cost-Performance Ratio | Offers high-performance, high-stability, and high-intelligence crochet equipment at reasonable prices, with quick investment return and long-term value creation for customers |
