| Brand Name: | HUAFANG |
| Model Number: | HF-609/B3 |
| MOQ: | 1 |
| Price: | Negotiation |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T,L/C |

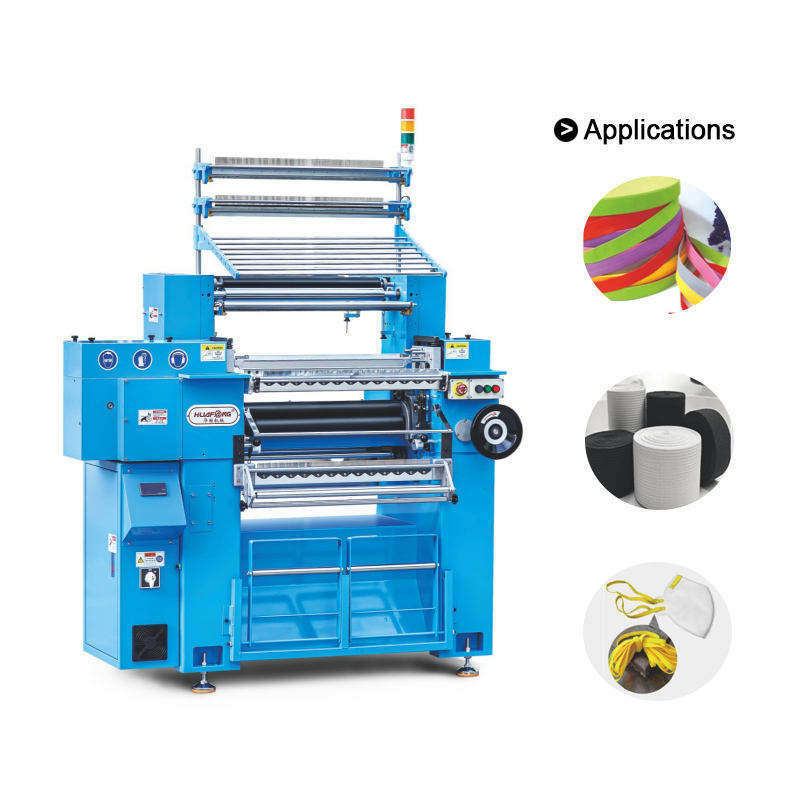

High Speed Automatic Non-Elastic And Elastic Flat Tape Crochet Machine
The HF-609/B3 High-Speed Flat Crochet Machine is a high-performance flat crochet equipment launched by Huafang Machinery, specially designed for producing various elastic and non-elastic webbing. The machine features an operating width of 600mm and is compatible with multiple gauge specifications including 14#, 15#, 18#, 20#, and 24#, flexibly meeting different fineness and density requirements for webbing production.
In terms of core drive, the machine is equipped with a 1.5KW-380V main motor, with a speed range of 800-1200 rpm, providing ample power and high operational efficiency. The B3 model adopts a left auxiliary box rocker transmission method, driving 3 weft bars to move smoothly for completing various webbing knitting actions. The structural design is scientifically sound, ensuring smooth and stable knitting movements.
In terms of structural design, the HF-609/B3 features a stable equipment structure that maintains high efficiency under high-speed operation, while being simple to operate and convenient to maintain, reducing the professional skill requirements for operators and daily maintenance complexity. The machine net weight is 450kg, with overall dimensions of 162×116×206cm, featuring a compact and solid structure that ensures stability and vibration resistance during high-speed operation.
In terms of standard configuration, the machine comes with 200 sha tsui, 500 warp stop needles, 500 stitching needles, as well as straight and curved trimming needles (1 each) and special tools, with one tool kit provided for every three machines, facilitating daily maintenance and spare parts replacement for customers. Additionally, the machine offers various optional accessories including front conveyor group, third layer weft conveyor group, and 609B widening device, allowing flexible function expansion according to customers' actual production needs.
The machine's core components include high-quality parts such as bearings, gearbox, motor, and gears, ensuring stable operation, durability, and reliability. The machine comes with a 1-year warranty, and mechanical test reports and video factory inspection are available to ensure product quality compliance. The product brand is HUAFANG, with the place of origin being Guangdong, China.
| Feature | Detailed Description |
|---|---|
| Wide Operating Width | Operating width of 600mm, adapting to various webbing production needs, producing multiple webbing strips per cycle with high efficiency |
| Multiple Gauge Options | Supports five gauge specifications including 14#, 15#, 18#, 20#, and 24#, flexibly adapting to different fineness and density requirements |
| High-Speed Stable Operation | Speed of 800-1200 rpm with stable equipment structure, maintaining high knitting quality even under high-speed operation |
| B3 Rocker Transmission System | Left auxiliary box rocker transmission driving 3 weft bars to move smoothly, ensuring smooth knitting actions and uniform webbing quality |
| Simple Operation & Easy Maintenance | User-friendly design for easy operation and convenient daily maintenance, reducing dependence on skilled technicians |
| Compact & Solid Structure | Net weight 450kg, dimensions 162×116×206cm, solid structure with smooth operation and low vibration |
| Rich Standard Configuration | Standard includes 200 sha tsui, 500 warp stop needles, 500 stitching needles, straight and curved trimming needles, and special tools, with one tool kit for every three machines |
| Flexible Optional Functions | Optional front conveyor group, third layer weft conveyor group, and 609B widening device for flexible function expansion |
| Durable Core Components | Core components include high-quality bearings, gearbox, motor, gears, etc., durable with low failure rate |
| Complete Quality Assurance |
1-year warranty, mechanical test reports and video factory inspection available, ensuring reliable equipment quality |
The HF-609/B3 High-Speed Flat Crochet Machine is suitable for producing various elastic and non-elastic webbing, with specific application areas including but not limited to the following categories:
(I) Garment Accessories
Underwear Webbing – Bra shoulder straps, underwear elastic bands, panty waistband elastics, requiring uniform elasticity and comfortable touch
Elastic Webbing – Various garment elastic bands, sportswear elastic closures, swimwear elastic bands, waistband rubbers
Garment Lace – Decorative lace for garments, lace trimmings, piping tapes, trimming tapes, and other decorative webbing
Garment Webbing – Suspenders, shoulder straps, belts, decorative tapes, and other garment accessory webbing
(II) Medical & Healthcare
Medical Bandages – Medical elastic bandages, compression bandages, gauze bandage alternatives, etc.
Sports Protective Straps – Elastic fixation straps for knee pads, wrist guards, waist supports, ankle supports, and other sports protective gear
(III) Luggage & Bags
Luggage Webbing – Backpack shoulder straps, handbag carrying handles, luggage binding straps, backpack compression straps, edge decorative tapes
Pet Supplies Webbing – Pet collars, leashes, harnesses, etc.
(IV) Home Textiles
Home Decorative Webbing – Curtain tie-backs, sofa piping tapes, cushion decorative belts, bedding edge tapes
Gift Packaging Webbing – Gift box decorative tapes, floral packaging ribbons, holiday decorative ribbons
(V) Industrial & Special Purpose
Industrial Webbing – Binding tapes, safety ropes, tool hanging straps, and other high-strength industrial webbing
Automotive Interior Webbing – Automotive seat belts, interior fixation webbing
Target Customer Groups:
This product is particularly suitable for small, medium, and large webbing manufacturers. Whether for large-volume standardized order production or small-batch multi-variety flexible production, the HF-609/B3 provides efficient and reliable webbing production solutions with its stable equipment structure, flexible gauge options, and convenient operation.
| Advantage | Detailed Description |
|---|---|
| Professional Equipment Manufacturing | Huafang Machinery specializes in the R&D and manufacturing of crochet equipment, with HF-609/B3 being a mature mass-produced model with stable and reliable quality |
| High-Quality Core Components | Core components include high-quality bearings, gearbox, motor, gears, etc., durable with low failure rate |
| Stable Structure & High Efficiency | Stable equipment structure maintains high efficiency even under high-speed operation, suitable for long-term continuous production |
| Simple Operation & Easy Maintenance | User-friendly design for easy operation and convenient maintenance, reducing dependence on skilled technicians |
| Flexible Configuration Options | Supports five gauge options from 14 to 24, optional front conveyor, third layer weft conveyor, widening device, etc. |
| Rich Standard Configuration | Standard includes sha tsui, warp stop needles, stitching needles, tool kit, etc., with one tool kit for every three machines for customer convenience |
| Quality Assurance System | Provides mechanical test reports and video factory inspection, 1-year machine warranty, ensuring equipment quality |
| Direct Factory Supply Advantage | Factory located in Guangdong with complete supply chain, ensuring stable delivery cycles and quality |
