Automatic High-Speed Needle Pass Machine Frequency Control For Elastic Rope

Product Introduction

Product Overview

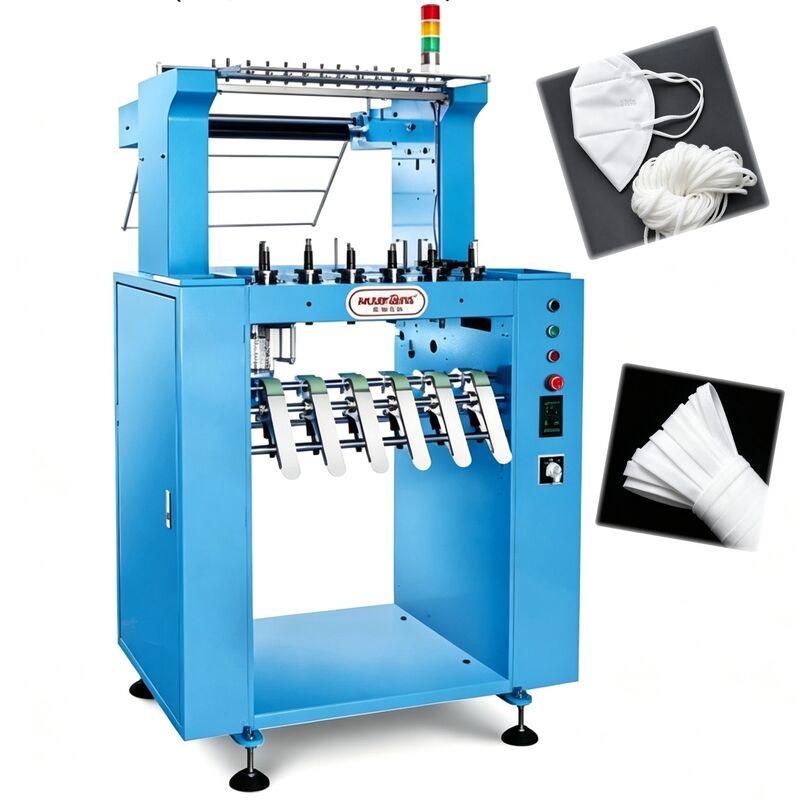

The HF-P1001 Automatic High-Speed Needle Pass Machine is a fully automatic high-speed knitting equipment developed by Huafang Machinery specifically for mask ear straps and various rope and belt production. The machine features a high-speed machine head as its core, delivering fast finished product output and material savings. It is equipped with an electronic frequency converter and electronic take-up device for automated continuous production, making it a preferred supplier in the textile webbing industry.

In terms of core configuration, the HF-P1001 comes standard with 6-pin 4M molding, producing rope products with a diameter of 0.25-0.3 (round type). Multiple optional needle specifications are available to flexibly meet different rope diameter and shape requirements:

• Option A: 8-pin 8M molding, diameter approx. 0.3-0.35 (round type)

• Option B: 12-pin 8M molding, diameter approx. 0.25-0.3 (flat type)

• Option C: 16-pin 11M molding, diameter approx. 0.3-0.4 (flat type)

• Option D: 24-pin 11M molding, diameter approx. 0.47-0.7 (flat type)

• Option E: 28-pin 9M molding, diameter approx. 0.5-0.55 (flat type)

The machine can equip needles according to customer requirements for customized production of hollow belts in various specifications.

In terms of spindle configuration, the machine supports 6 to 8 spindles per set, flexibly selectable according to production capacity requirements. The total net weight is 260kg, with a compact and solid structure suitable for flexible workshop deployment.

In terms of intelligence and convenience, the machine features the following outstanding characteristics:

• Built-in thread break auto-stop function – automatically stops when thread breaks, reducing material waste

• Simple needle replacement – direct insertion and removal without complex tools, very durable

• Easy to operate, quick to install and commission, easy to learn – one person can manage up to 30 machines, significantly saving labor costs

The machine is suitable for weaving 3M-N95 medical mask ropes, apparel and shoe material rope accessories, gift and ornament accessories, and can produce hollow/core round fabrics and woven fabrics (rope belts). It supports both elastic and non-elastic materials, meeting diverse production needs.

Product Features

Application Scope

The HF-P1001 Automatic High-Speed Needle Pass Machine is suitable for weaving various rope belts and hollow belt products, with specific application areas including but not limited to the following categories:

(I) Medical & Healthcare

• Mask Ear Straps – Ear loop ropes for 3M, N95 and other medical protective masks, requiring moderate elasticity and comfortable wearing

• Medical Ropes – Ties and ropes for medical protective clothing, surgical gowns, and other medical supplies

• Medical Hollow Belts – Hollow/core round fabric ropes for medical assistance applications

(II) Garment Accessories

• Garment Ropes – Decorative ropes, drawstrings, hood ropes, waist ropes for various garments

• Shoe Material Ropes – Shoelaces, decorative ropes, and shoe material accessories for sports shoes and casual shoes

• Luggage Ropes – Backpack drawstrings, handbag decorative ropes, luggage binding ropes

(III) Gift & Ornament Accessories

• Gift Packaging Ropes – Gift box decorative ropes, floral packaging ropes, holiday gift ropes

• Ornament Accessories – Various ropes and hollow belts for handmade ornaments and DIY material kits

(IV) Craft Webbing & Rope Belts

• Craft Webbing – Various decorative craft webbing and braided ropes

• Hollow Belts – Hollow/core round fabrics, woven fabrics (rope belts)

• Elastic Ropes – Elastic hollow belts and elastic ropes for sports equipment and garment accessories

• Non-Elastic Ropes – Non-elastic ropes for packaging, gifts, and industrial applications

Target Customer Groups:
This product is particularly suitable for mask manufacturers, garment accessory factories, shoe material accessory factories, gift packaging material factories, and rope processing plants. Whether for large-volume standardized production or small-batch multi-variety customized production, the HF-P1001 provides cost-effective rope production solutions with its flexible needle configuration, convenient operation, and efficient one-person-multi-machine management mode.
