| Brand Name: | HUAFANG |
| Model Number: | HF-B704-M |
| MOQ: | 1 |
| Price: | Negotiation |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T,L/C |

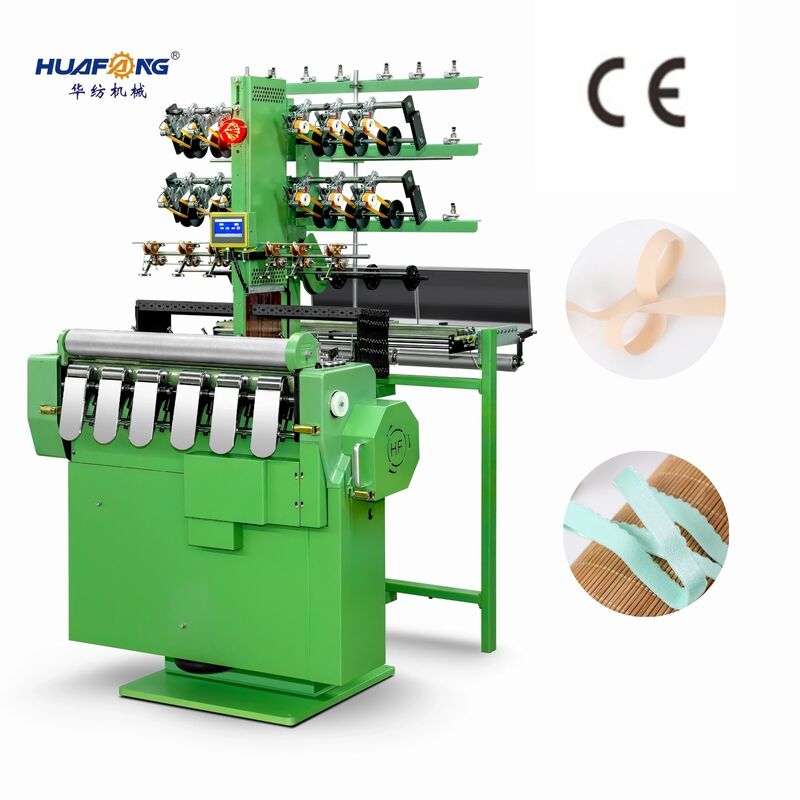

The High-Speed Servo Flat Head Shuttleless Ribbon Loom is a high-performance shuttleless weaving equipment launched by Huafang Machinery, specially designed for large-scale production of various webbing. The machine adopts a servo motor drive system combined with flat head shuttleless weaving technology, achieving high-speed, high-precision, and low-energy-consumption webbing production, making it an ideal choice for the textile webbing industry to improve capacity and quality.
Taking the HF6/66 model as an example, this machine supports simultaneous production of 6 webbing strips, with a reed width of 66mm, equipped with 20 heald frames, and a pattern plate cycle of 48 steps. The machine is powered by a 4.3KW main motor, with a machine speed of 1200-1400 rpm, a weft density range of 2.9-40.3 weft/cm, and a paper frame length of 530mm. This configuration combination delivers both high efficiency and high quality in medium-width webbing production.
In terms of core drive, the machine adopts an internationally advanced servo motor control system to achieve high-precision, high-response motion control, with excellent high-speed operation stability and adaptability, and superior performance under variable speed and variable load conditions. Compared with traditional two-speed motors, the servo motor offers outstanding energy efficiency, significantly reducing long-term operating costs.
In terms of structural design, the machine adopts a flat head shuttleless weaving structure with smooth operation, low vibration, and low noise, suitable for long-term continuous high-speed operation. The overall structure is compact, and operation and maintenance are simple and convenient, reducing professional skill requirements for operators and daily maintenance complexity.
| Feature | Detailed Description |
|---|---|
| Servo Motor Drive System | Adopts internationally advanced servo motor control system for high-precision, high-response motion control with excellent variable speed and variable load performance |
| Flat Head Shuttleless Weaving Structure | Adopts flat head shuttleless weaving technology with smooth operation, low vibration, and low noise, suitable for long-term continuous high-speed operation |
| Multi-Webbing Synchronous Production | Supports simultaneous production of 6 webbing strips, greatly improving output per machine |
| High-Speed Operation | Machine speed of 1200-1400 rpm with strong high-speed operation stability and high production efficiency |
| Wide Weft Density Adjustment Range | Weft density range of 2.9-40.3 weft/cm, flexibly adapting to different webbing types and process requirements |
| 20 Heald Frames Configuration | Equipped with 20 heald frames for rich pattern variations, meeting complex webbing pattern production needs |
| 48-Step Pattern Plate Cycle | Pattern plate cycle of 48 steps, supporting diversified pattern designs and adapting to multi-variety production changeovers |
| Energy-Efficient | Servo motor consumes less energy than traditional two-speed motors, offering significant long-term operating cost advantages |
| Simple Operation & Easy Maintenance | Easy to operate and maintain, reducing dependence on skilled technicians |
The High-Speed Servo Flat Head Shuttleless Ribbon Loom is suitable for large-volume large-scale production of various webbing, with specific application areas including but not limited to the following categories:
(I) Garment Accessories
Elastic Webbing – Waistband elastics, pants elastic bands, sportswear elastic closures, swimwear elastic bands, and other elastic webbing
Underwear Webbing – Bra shoulder straps, underwear elastic tapes, panty waistband elastics, etc.
Garment Decorative Webbing – Decorative lace, piping tapes, trimming tapes, fashion accessory webbing, etc.
Zipper Tapes – Zipper tape base materials requiring flatness, abrasion resistance, and dimensional accuracy
Hook & Loop Fastener Tapes – Hook and loop base tapes for Velcro, requiring good tensile strength and repeated fastening durability
(II) Luggage & Bags
Luggage Webbing – Backpack shoulder straps, handbag carrying handles, luggage binding straps, backpack compression straps, edge decorative tapes
Pet Supplies Webbing – Pet collars, leashes, harnesses, etc.
(III) Medical & Healthcare
Medical Bandages – Medical elastic bandages, compression bandages, gauze bandage alternatives, etc.
Sports Protective Straps – Elastic fixation straps for knee pads, wrist guards, waist supports, and other sports protective gear
(IV) Home Textiles
Home Decorative Webbing – Curtain tie-backs, sofa piping tapes, cushion decorative belts, bedding edge tapes
Gift Packaging Webbing – Gift box decorative tapes, floral packaging ribbons, holiday decorative ribbons
(V) Industrial & Special Purpose
Industrial Webbing – Binding tapes, safety ropes, tool hanging straps, and other high-strength industrial webbing
Automotive Interior Webbing – Automotive seat belts, interior fixation webbing
Huafang Machinery has been dedicated to the R&D and manufacturing of textile webbing equipment for many years, accumulating rich technical experience in the field of shuttleless ribbon looms. The High-Speed Servo Flat Head Shuttleless Ribbon Loom is a mature mass-produced model with stable and reliable quality, highly trusted by customers.
The company masters core servo control technology, adopting internationally advanced servo motor drive systems to achieve high-precision, high-response motion control, continuously providing efficient and energy-saving weaving solutions for the webbing industry. Compared with traditional two-speed motors, the servo motor offers superior performance in variable speed and variable load conditions with lower energy consumption, helping customers significantly reduce long-term operating costs.
The company is committed to "building a textile accessories supermarket in China," with a complete supply chain system in textile equipment and accessories, ensuring customers can conveniently access equipment spare parts and technical support. Huafang brand enjoys a good reputation in the textile webbing industry, with products widely used in various webbing manufacturers.
The company relies on Guangdong's complete manufacturing supply chain to achieve in-house production and direct factory supply, ensuring controllable equipment quality and stable delivery cycles. Meanwhile, the company provides high-performance shuttleless webbing equipment at reasonable prices, helping customers improve webbing quality and production efficiency, reduce overall operating costs, and create long-term value for customers.
