High-Speed Shuttleless Tape Loom PLC Controlled 8 Strips For Webbing

Product Introduction

Product Overview

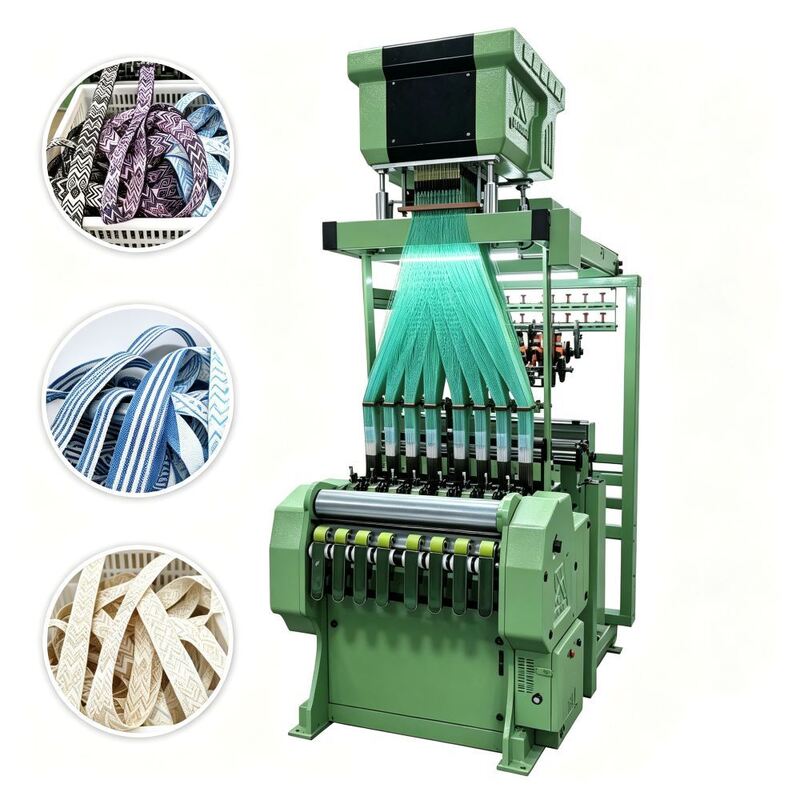

Model 8/55 Computerized Jacquard Machine is a digital professional tape‑weaving equipment launched by Dongguan Huafang Machinery Co., Ltd. This model comes with 8 tape lines, reed width 55mm, heald frame quantity 6‑8 pieces, pattern chain loop 8‑48 loops, machine power 2.2KW, rotating speed 600‑950RPM. Head opening supports inclined opening and flat opening, matching jacquard needles from 192‑480 needles. The total machine power is 2000‑2200W, net weight 900kg, overall dimension 1.9M×1.05M×2.6M. It is covered by 1‑year warranty and originates from Guangdong, China.

Model 8/55 can weave 8 tapes simultaneously with reed width 55mm. Heald frame can be set to 6‑8 pieces. Pattern chain loop ranges 8‑48 loops, machine speed adjustable from 600‑950RPM according to yarn material and weaving process. Two head‑opening modes: inclined opening and flat opening for different yarns. Applicable jacquard needles range 192‑480 needles, and custom standard needle counts are available: 192, 240, 320, 384, 440, 448, 480, 512, 560, 640, 720, 768, 800, 896, 960, 1008, 1120, 1280, 1536. Equipped with PLC and motor as core components, it adopts digital PLC control for pattern editing and switching without complicated mechanical adjustment. Weighing 900kg, the machine reduces vibration under high‑speed running. It can stably run long‑term for simultaneous jacquard weaving of 8 tapes, balancing output and pattern quality, ideal for mass production of medium‑width tapes.

What It Is

Model 8/55 Computerized Jacquard Machine is a digitally‑controlled special‑purpose mechanical equipment for tape weaving. Driven by motor under PLC control system, it supports simultaneous weaving of 8 tape lines with reed width 55mm, for jacquard weaving of 192‑480 needles. It is specially designed for automatic production of medium‑width jacquard tapes. It converts pre‑set patterns into physical textures on tapes, replacing traditional mechanical jacquard machines. Pattern modification and commissioning are convenient. It can produce 8 tapes at one time, suitable for both sampling and mass continuous production of patterned tapes.

Product Features

1. 8‑tape simultaneous production: Model 8/55 weaves 8 tapes in one run with reed width 55mm for medium‑width tapes, greatly improving output per machine.

2. Dual head‑opening modes: Inclined opening and flat opening are selectable to fit different yarn materials and weaving processes.

3. Flexible adjustable parameters: Heald frame 6‑8 pieces optional; pattern chain loop 8‑48 loops; machine speed 600‑950RPM adjustable according to products and yarns. Matching jacquard needles 192‑480 needles, further custom needle counts are available.

4. PLC digital control system: Core components are PLC and motor. Patterns are modified via program without mechanical rework, shortening style‑change setup time.

5. Solid frame for continuous production: 900‑kg machine weight, power 2.2KW. Low vibration at high‑speed weaving for stable long‑run mass production in workshop.

6. Hardware & after‑sales support: Dimension 1.9M×1.05M×2.6M for reasonable workshop layout. 1‑year full‑machine warranty for easy maintenance.

Application Scope

Model 8/55 computerized jacquard machine manufactures medium‑width jacquard tapes with 8 tapes output. It is widely used in textile tape processing industry, covering garment accessories, luggage fittings, shoe & hat trims, home textiles, outdoor leisure goods, pet supplies, craft ornament gifts, automotive interior parts, medical elastic accessories and industrial supporting tapes.

• Garment accessories: jacquard elastic tapes, clothing label tapes, collar decorative tapes, waist jacquard tapes and garment lace tapes

• Luggage & handbags: jacquard binding tapes for bags, backpack decorative tapes, handbag jacquard decorative tapes

• Shoes & hats: shoe‑material jacquard tapes, jacquard shoelaces, hat decorative tapes

• Home textiles: jacquard binding tapes for pillows, curtain decorative tapes, bedding decorative tapes

• Outdoor goods: decorative tapes for outdoor gear, jacquard backpack tapes

• Pet supplies: jacquard tapes for pet collars and pet leashes

• Craft gifts: gift‑wrapping jacquard tapes, hand‑made decorative tapes

• Automotive interior: jacquard decorative tapes for car interior

• Medical accessories: medium‑width patterned elastic binding tapes, medical jacquard elastic tapes

• Industrial field: marking tapes, equipment decorative tapes

Working with 192‑480 needle patterns, this model can produce custom‑pattern medium‑width tapes for sampling and mass‑volume production to satisfy diversified demands from various industries.

Company Advantages

1. Local manufacturing: Dongguan Huafang Machinery Co., Ltd. The machine is manufactured in Guangdong, China. Model 8/55 is a mature mass‑produced model, custom jacquard needle solutions are available.

2. Reliable hardware configuration: PLC and motor as core components. 900‑kg heavy‑duty stable frame ensures smooth running under 8‑tape simultaneous weaving, supporting long‑time continuous workshop production.

3. Practical parameter setting: 8‑tape output, reed width 55mm, dual opening modes, adjustable speed 600‑950RPM, 192‑480 jacquard needles, perfectly matching production requirements for medium‑width tapes.

4. Complete after‑sales guarantee: 1‑year full‑machine warranty. Standardized parameters facilitate machine installation, commissioning, operator training and daily maintenance for customer factories.

5. Sampling & mass‑production compatible: Suitable for small‑batch pattern sampling and large‑volume orders. It can produce simple patterns as well as complex patterns within 192‑480 needle range to meet manufacturing requirements of multi‑industry customers.
